Do You Fully Trust Your Measurement Data When Inspecting Parts?
In quality control, inspecting manufactured parts and assemblies is rarely straightforward. Complex geometries, reflective or difficult surfaces, and tight tolerances demand high accuracy and fine detail. Yet coordinate measuring machines (CMMs) are often fully booked, forcing teams to balance speed, availability, and precision.
But the real challenge isn’t just measuring — it’s trusting the data. When a dimension appears out of tolerance, is the issue in the part, the process, or the measurement itself?
Is the Problem in the Part — or the Measurement?
When a quality issue arises, QC and QA professionals must determine whether the deviation reflects a genuine manufacturing defect or uncertainty in inspection data.
Key questions emerge:
- Was the part scanned thoroughly?
- Is the data complete and reliable?
- Does the measurement truly represent the part’s condition?
Doubt in measurement results can be costly. If inaccurate data is accepted, corrective actions may be missed, allowing defects to propagate. Conversely, questioning valid measurements can delay decisions, disrupt production, and increase rework costs.
Reliable inspection data is therefore essential. Confident decisions require measurements that are accurate, verifiable, and repeatable.
A Solution Designed for Confidence
To address these challenges, MEGA Tech is proud to present Creaform developed the HandySCAN 3D|EVO Series — a portable 3D scanning solution engineered specifically for metrology-grade inspections.
Designed for QC and QA specialists, the EVO Series enables high-accuracy dimensional inspections on complex parts and challenging finishes, without constant reliance on a CMM.
Backed by ISO/IEC 17025 accredited in-house laboratory validation and ISO 10360 certification, the system delivers consistent, traceable accuracy. The result: reduced ambiguity and greater confidence in inspection outcomes.
Rather than merely capturing data, the EVO Series focuses on capturing the right data — complete, precise, and dependable.
Four Key Innovations of the EVO Series
1. Embedded GUI for an Intuitive Workflow

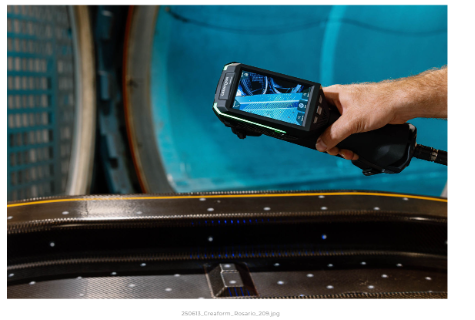

The integrated graphical user interface (GUI) aligns the operator’s line of sight with both the part and scan data.
This built-in display provides:
- Real-time visual guidance
- Immediate access to parameters
- In-sight indicators confirming data completeness
By minimizing constant shifts between scanner and computer, it improves ergonomics, visualization, and data validation.
2. Augmented Reality & Auto-Alignment

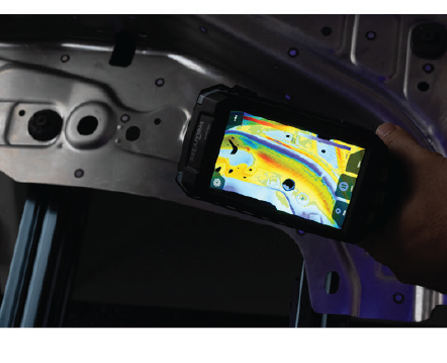

Augmented reality (AR) enhances efficiency by projecting scan information directly onto the part.
Operators can:
- Visualize mesh generation live
- Identify areas needing higher resolution
- Superimpose colormaps to detect deviations
Automatic alignment with CAD references streamlines cleanup and reduces manual post-processing.
3. Integrated Photo Camera
A built-in camera allows users to capture high-quality images during inspection.
This supports:
- Faster documentation
- Visual traceability
- Enhanced communication
Photos can be linked directly to the 3D model, benefiting inspection and reverse engineering workflows.
4. Wireless Connectivity & Mobility

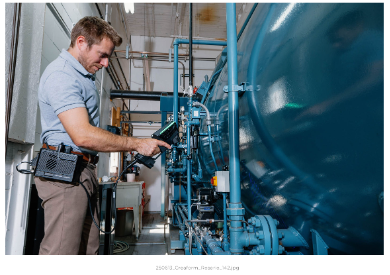

Paired with the Mobility Kit, the scanner becomes a fully wireless solution.
Benefits include:
- Freedom from cables and external power
- Greater flexibility on the shop floor
- Real-time monitoring via the embedded interface
All while maintaining metrology-grade accuracy.
Confident Decisions Start with Trusted Data
For QC and QA professionals, every decision depends on measurement reliability. When results are uncertain, corrective actions become hesitant and risk increases.
The HandySCAN 3D|EVO Series is built to eliminate that uncertainty. Through an embedded GUI, AR visualization, integrated photo documentation, and wireless mobility, it empowers teams to inspect complex parts with speed and confidence.
Combined with the Creaform Metrology Suite, the EVO Series delivers more than scanning — it provides trusted, verifiable results that help manufacturers detect issues early, reduce rework, and maintain quality standards.Because in modern manufacturing, confidence doesn’t start with measurement — it starts with trustworthy data.
Article by: MEGATech & AMETEK (Thailand) Co., Ltd. << Click Here
