Hexagon’s Thailand Experience Center (TEC), Bangkok, Mar 21, 2024. Hexagon Metrology (Thailand) Ltd. , recently held a seminar on the tropic: “A New Level of Productivity in Tube & Wire Manufacturing.” MEGA Tech is pleased to reiterate some interesting contents about Hexagon’s lineup of products in this column.
Tube and wire measurement: Any shape, any size, anywhere
Hexagon’s comprehensive range of tube and wire measurement systems delivers solutions tailored to a variety of applications in the world of tube production. They combine high-precision hardware engineering with innovative and intuitive software platforms to fully meet the demands of inspection, manufacturing, gauging and reverse engineering processes, whether manual or automated. The result is a product portfolio tailored to support cost-effective production and meet the challenges of every application in the tube and wire manufacturing sector
BendingStudio XT: A single hub for complete tube and wire inspection
The BendingStudio XT software platform is a complete end-to-end solution for tube and wire inspection and production control. The software links all data and processes related to the production of bent parts, from design and process planning to manufacturing and quality control. BendingStudio XT is the only tool to meet and combine these requirements with an emphasis on metrological processes.
BendingStudio XT is the complete package for complex analysis and management of tube and wire
production
TubeInspect: A turnkey solution for instant high-end tube measurement
TubeInspect is the leading solution for high-speed tube measurement. Based on a multiple-camera optical scanning system built into a turnkey single-piece cell format, TubeInspect represents the height of what’s possible with optical scanning in the tube and wire production industry.
Powered by the dedicated BendingStudio XT software platform, TubeInspect is available in both an industrial-sized TubeInspect P16.2 and a smaller TubeInspect P8.2 variant. Both models are also available in HRC high-resolution camera versions delivering improved detail and feature analysis. High-end models also offer the possibility of integration within a larger robotic production cell, making the tube and wire quality process fully Industry 4.0 compatible.

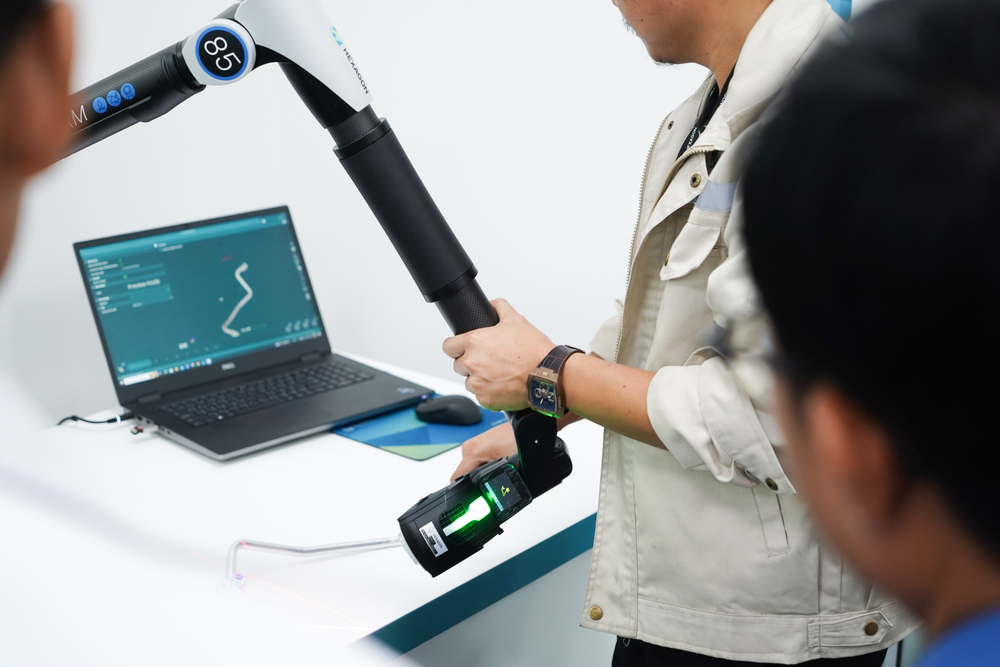

Absolute Arm: Tube measurement on the move
Combining the established laser scanning and infrared probing technology of the Absolute Arm range with the leading tube and wire analysis capabilities of BendingStudio XT, the Absolute Arm is the perfect portable complement to the TubeInspect series.
When working from the same innovative software platform as TubeInspect, the Absolute Arm can deliver high-speed manual collection of high-accuracy data of any tube or wire. Leveraging the leading measurement technology of Hexagon’s flagship portable measuring arm compatible laser scanners, full non-contact measurement and geometry definition is quickly achievable with no need for special clamping or alignment procedures, even on shiny surfaces. The system also benefits from a strengthened arm structure and infrared non-contact probe technology custom-designed for tube measurement.
This seminar was so successful with the number of attendees exceeded expectation. Moreover, the event witnessed positive feedback and appreciation from audiences.
Article by: MEGA Tech & Hexagon Thailand << Click Here
